Name: FH800SX-i
SKU: FH800SX-i

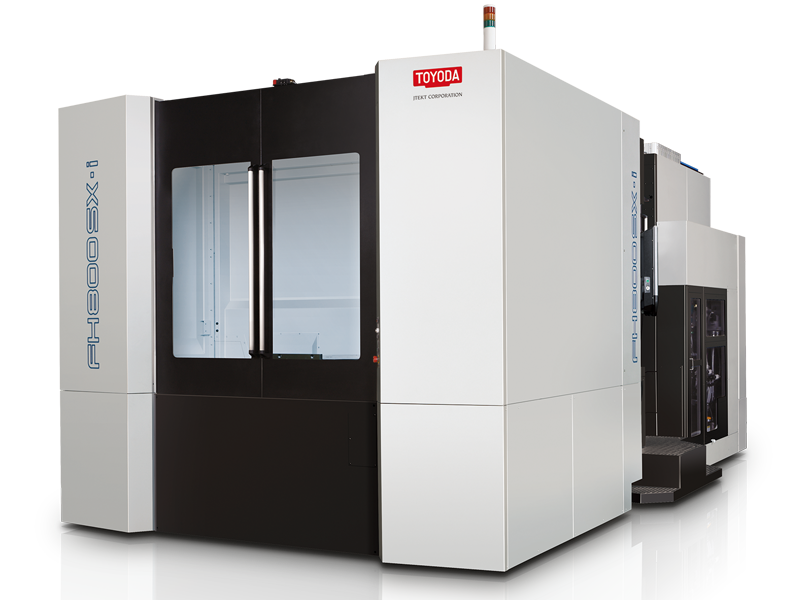

The FH800SX-i is a powerful, high-speed horizontal machining center featuring a 6,000 RPM spindle, with options of an 8,000 RPM or 15,000 RPM high-torque spindle, and a rapid feedrate of 2,127 ipm (54 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity. The expansive work envelope allows for large-part machining.

Additional Information

Pallet Size	31.5” x 31.5” (800 mm x 800 mm)
Table Index	Full NC table (360,000 positions)
X-axis Travel	57.1” (1,450 mm)
Y-axis Travel	49.2” (1,250 mm)
Z-axis Travel	61” (1,550 mm)
Max Workpiece Swing	59.06” (1,500 mm)
Max Workpiece Height	59.06” (1,500 mm)
Max Work Load on the Pallet	5,500 lb (2,500 kg)
Spindle Output Torque	391 ft-lb (530 Nm)
Available Spindle	CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis)	2,127 ipm (54 m/min)
Rapid Feedrate (Y axis)	2,127 ipm (54 m/min)
Rapid Feedrate (Z axis)	2,127 ipm (54 m/min)
Tool Storage Capacity	60 Standard (121 Optional)
Standard Floor Space	185” x 304" (4,680 mm x 7,710 mm)
Machine Height	145" (3,680 mm)
Linear Position Accuracy	± .00012" (.003 mm) full stroke
Linear Repeatability	± .00006" (.0015 mm)
Rotary Table Index Accuracy	± 7 arc seconds
Standard Net Weight	61,600 lb (28,000 kg)
