Name: FH630SX-i
SKU: FH630SX-i

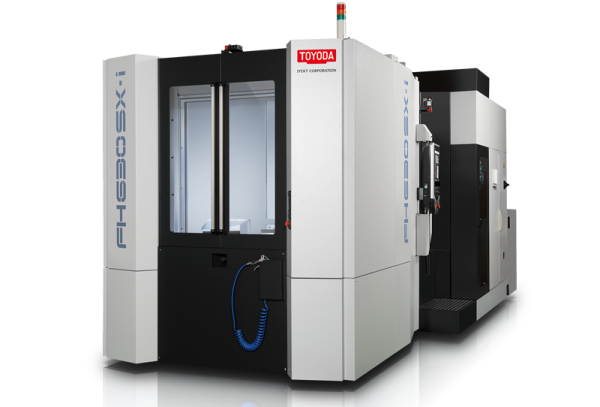

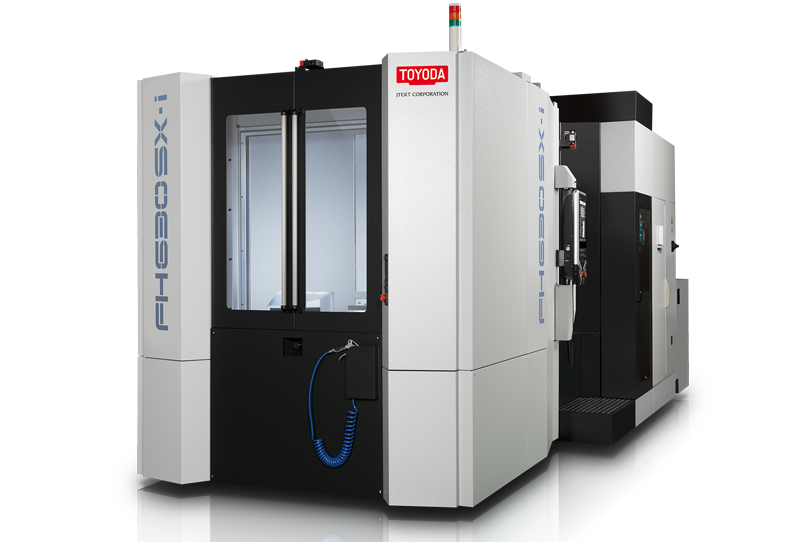

The FH630SX-i is a powerful, high-speed horizontal machining center featuring an 8,000 RPM spindle, with the option of a 15,000 RPM high-torque spindle, and a rapid feedrate of 2,362 ipm (60 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity.

Additional Information

Pallet Size	24.8" x 24.8" (630 mm x 630 mm)
Table Index	Full NC table (360,000 positions)
X-axis Travel	41.34” (1,050 mm)
Y-axis Travel	35.43” (900 mm)
Z-axis Travel	41.34” (1,050 mm)
Max Workpiece Swing	46.06” (1,170 mm)
Max Workpiece Height	49.21" (1,250 mm)
Max Work Load on the Pallet	3,306 lb (1,500 kg)
Spindle Output Torque	391 ft-lb (530 Nm)
Available Spindle	CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis)	2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)	2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)	2,362 ipm (60 m/min)
Tool Storage Capacity	60 Standard (121 Optional)
Standard Floor Space	141.7" x 271.6" (3,600 mm x 6,900 mm)
Machine Height	126.1" (3,203 mm)
Linear Position Accuracy	± .00012" (.003 mm) full stroke
Linear Repeatability	± .00008" (.002 mm)
Rotary Table Index Accuracy	± 7 arc seconds
Standard Spindle	Cat #50 74HP 8,0000 RPM (1,202 Nm)
Standard Net Weight	43,210 lb (19,600 kg)
