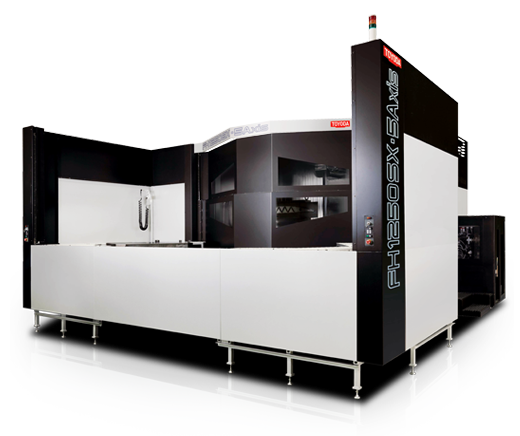

The FH1250SX 5-axis is a five-axis horizontal machining center designed for complex, large part machining. It features a 15,000 RPM integral tilting spindle and rapid feed rates of 1,260 ipm (32 m/min) on the X and Y axes and 1,654 ipm (42 m/min) on the Z axis.
The TMM turning centres are true slant-bed lathes equipped with live tooling and a programmable C-axis. The TMM live tooling lathes are the perfect way to make small to medium lot sizes that require turning and secondary milling/drilling operations profitable. Save time with one setup and you won’t lose accuracy due to refixturing.

Additional Information

Pallet Size	49.2" x 49.2" (1,250 mm x 1,250 mm)
Tilt Spindle (A-axis)	-100° ~ +45°
Table Index	Full NC table (360,000 positions)
X-axis Travel	86.6" (2,200 mm)
Y-axis Travel	63” (1,600 mm)
Z-axis Travel	72.8" (1,850 mm)
Max Workpiece Swing	94.48” (2,400 mm)
Max Workpiece Height	70.87” (1,800 mm)
Max Work Load on the Pallet	11,000 lb (5,000 kg)
Spindle Output Torque	295 ft-lb (400 Nm)
Available Spindle	CAT#50 50HP 15,000 RPM (High Torque 400 Nm)
Rapid Feedrate (X axis)	1,260 ipm (32 m/min)
Rapid Feedrate (Y axis)	1,260 ipm (32 m/min)
Rapid Feedrate (Z axis)	1,654 ipm (42 m/min)
Tool Storage Capacity	60 Standard (121 Optional)
Standard Floor Space	249" x 394" x 178" (6,320 mm x 10,000 mm x 4,520 mm)
Machine Height	178" (4,520 mm)
Standard Net Weight	109,100 lb (49,500 kg)
Linear Repeatability (X, Y, Z)	± 0.00008" (± 0.002 mm)
Rotary Table Index Accuracy	± 7 arc seconds
