Name: FH1250SX
SKU: FH1250SX

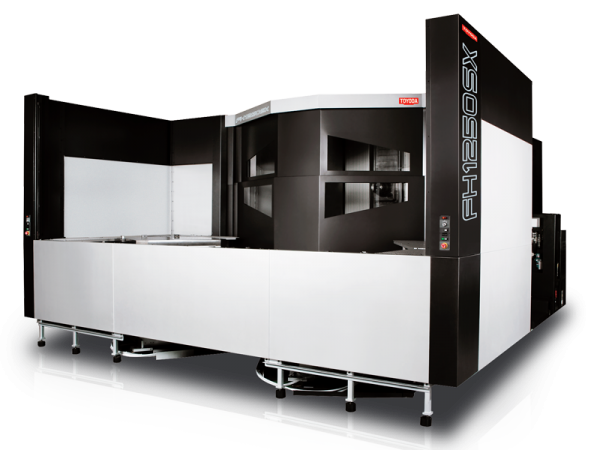

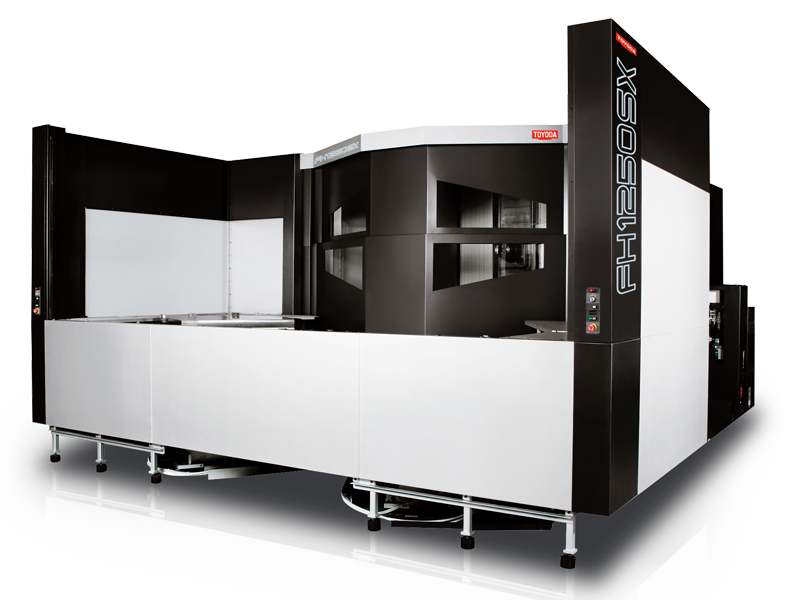

The FH1250SX is a powerful, high-speed horizontal machining center featuring a 6,000 RPM spindle, with options of an 8,000 RPM or 15,000 RPM high-torque spindle, and a rapid feedrate of 1,654 ipm (42 m/min). This machine has cylindrical roller guides for increased speed, and dual ballscrew drive on the Y and Z axes and a Meehanite cast iron base for maximum rigidity.

Additional Information

Pallet Size	49.2" x 49.2" (1,250 mm x 1,250 mm)
Table Index	Full NC table (360,000 positions)
X-axis Travel	86.6" (2,200 mm)
Y-axis Travel	63” (1,600 mm)
Z-axis Travel	72.8" (1,850 mm)
Max Workpiece Swing	84.49” (2,400 mm)
Max Workpiece Height	70.87” (1,800 mm)
Max Work Load on the Pallet	11,000 lb (5,000 kg)
Spindle Output Torque	391 ft-lb (530 Nm)
Available Spindle	CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
Rapid Feedrate (X axis)	1,654 ipm (42 m/min)
Rapid Feedrate (Y axis)	1,654 ipm (42 m/min)
Rapid Feedrate (Z axis)	1,654 ipm (42 m/min)
Tool Storage Capacity	60 Standard (121 Optional)
Standard Floor Space	244" x 389" (6,200 mm x 9,900 mm)
Machine Height	178" (4,520 mm)
Linear Position Accuracy	± .00012" (±0.003 mm) full stroke
Linear Repeatability	± 0.00008" (± 0.002 mm)
Rotary Table Index Accuracy	± 7 arc seconds
Standard Spindle	CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Standard Net Weight	105,821 lb (48,000 kg)
