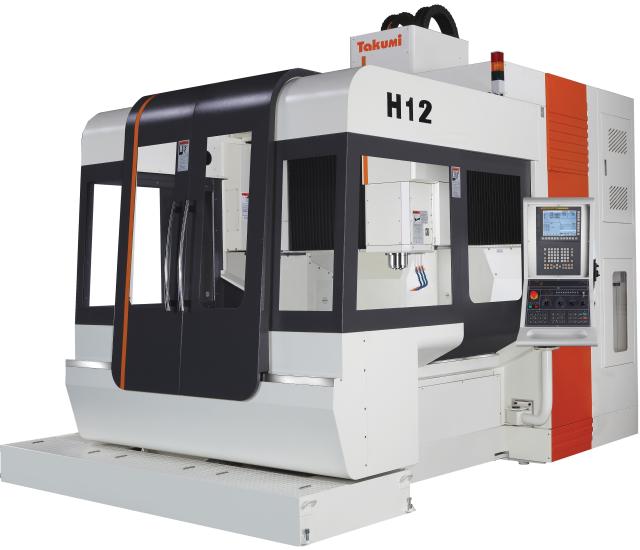

Takumi H12 3-Axis Double Column Machining Center
The Takumi H series of double column machining centers are built for speed, accuracy and high quality 3d surface finishing needed for die/mold machining.
53.2 in / 1,350 mm
37.4 in / 950 mm
23.6 in / 600 mm
7.87 ~ 31.5 in / 200~800 mm
59.1 x 37.8 in / 1,500 x 960 mm
5,512 lbs / 2,500 kg
6 x .9” on 6.3” Centers/6 x 22mm on 160mm Centers
Direct Drive
15,000 rpm
20.1/24.8 HP / 15/18.5 Kw
30 bar / 435.11 psi
CAT 40
1,181 x 1,181 x 1,181 ipm / 30 x 30 x 30 m/min
0.04~787 ipm / 1 ~ 20,000 mm/min
Swing Arm
30 tools
11.8 in / 300 mm
15.4 lbs / 7 kg
CAT 40 (BT 40 optional)
5 CFM @ 85-115 psi / 0.14m3 /min. @ 6-8 bar
50 kva
28,600 lbs / 13,000 kg
41.7 in / 1,060 mm
7.0kw/4.5kw/7.0kW
