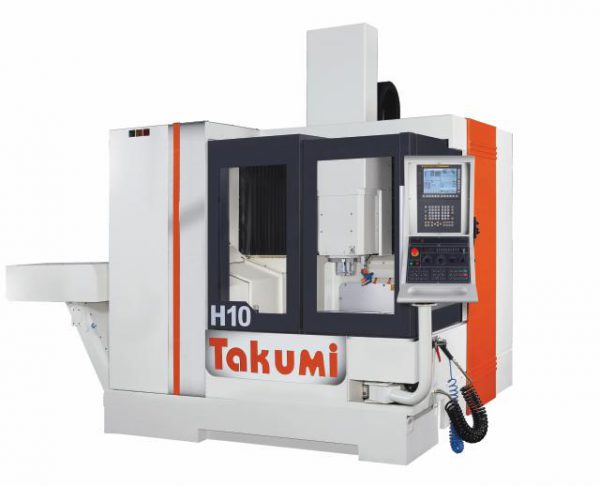

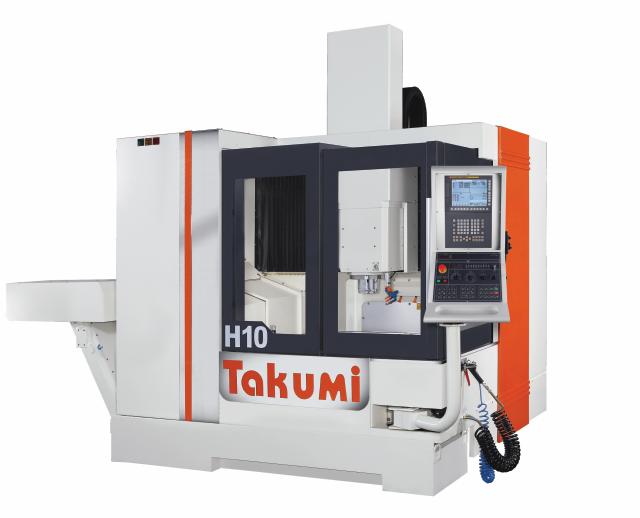

Takumi H10 3-Axis Double Column Machining Center
The Takumi H series of double column machining centers are built for speed, accuracy and high quality 3d surface finishing needed for die/mold machining.
40.16 in / 1,020 mm
27.56 in /700 mm
19.69 in / 500 mm
7.09 ~ 26.77 in / 180 ~ 680 mm
41.3 x 27.6 in / 1,050 x 700 mm
1,760 lbs / 800 kg
6 x .71” on 4.92” Centers/6 x 18mm on 125mm Centers
Direct Drive
15,000 rpm
20.1/24.8 HP / 15/18.5 Kw
30 bar / 435.11 psi
CAT 40
1,259 x 1,259 x 1,259 ipm / 32 x 32 x 32 m/min
0.04-197 ipm / 1-5,000 mm/min
Swing Arm
30 tools
11.8 in / 300 mm
15.4 lbs / 7 kg
CAT 40 (BT 40 optional)
5 CFM @ 85-115 psi / 0.14m3 /min. @ 6-8 bar
50 kva
20,020 lbs / 9,100 kg
42.5 in / 1,080 mm
4.5kw/4.5kw/4.5kW
