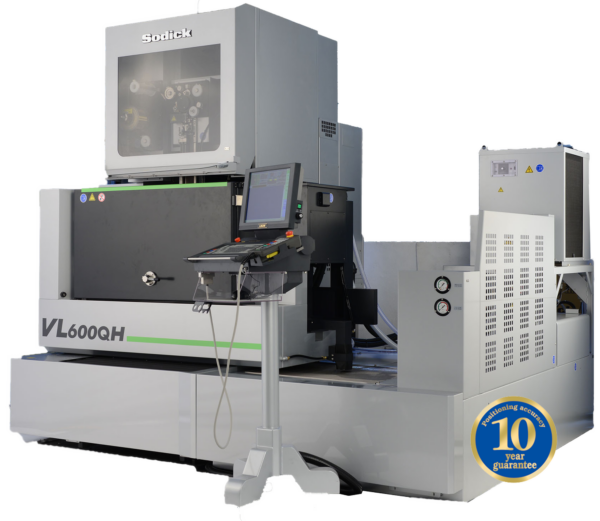

Sodick VL Series VL600QH

The VL600QH is an ideal solution for even the tallest workpieces. With a reliable threader and rigid linear motor drives, the VL600QH maintains excellent performance and accuracy along all 20 inches of Z.

Additional Information

X-axis Travel	23.62” (600 mm)
Y-axis Travel	15.75" (400 mm)
Z-axis Travel	19.69” (500 mm)
U, V - Axis Travel	3.54" x 3.54" (90 x 90 mm)
Wire Dia. Range	0.004” ~ 0.012” (0.10 ~ 0.30 mm)
Work Tank Inner Dim. W x D	40.94" x 30.71” (1040 x 780 mm)
Max. Workpiece Weight	1,874 lbs (850 kg)
Dist. Floor to Table Top	36.61” (930 mm)
Machine Tool Dim. W x D x H	118.89" x 102.56" x 100.0" (3,020 x 2,605 x 2,540 mm)
Machine weight	7,275 lbs (3,300 kg)
