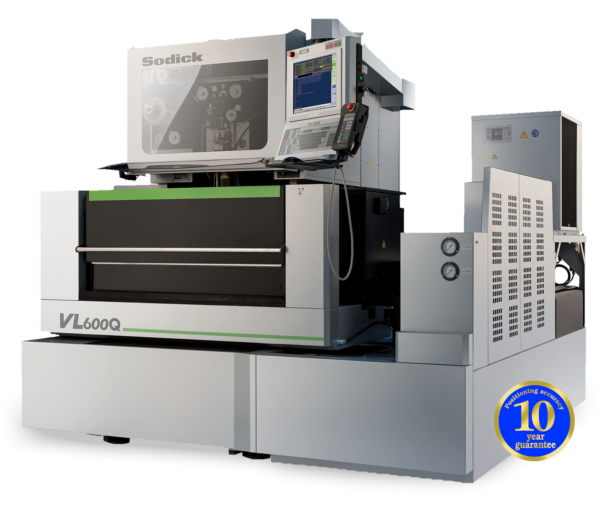

Sodick VL Series VL600Q

The VL600Q Wire EDM features Sodick’s Linear Motor Technology. The VL Series is an advanced line of performance Wire EDM. The large sized VL600Q is well-suited for a wide range of machining applications.

Additional Information

X-axis Travel	23.62” (600 mm)
Y-axis Travel	15.75" (400 mm)
Z-axis Travel	10.63” (270 mm)
U, V - Axis Travel	3.15” x 3.15” (80 x 80 mm)
Wire Dia. Range	0.004” ~ 0.012” (0.10 ~ 0.30 mm)
Work Tank Inner Dim. W x D	40.94" x 30.71” (1040 x 780 mm)
Max. Workpiece Weight	1,874 lbs (850 kg)
Dist. Floor to Table Top	36.61” (930 mm)
Machine Tool Dim. W x D x H	103.15" x 102.56" x 81.89" (2,620 x 2,605 x 2,080 mm)
Machine weight	7,275 lbs (3,300 kg)
