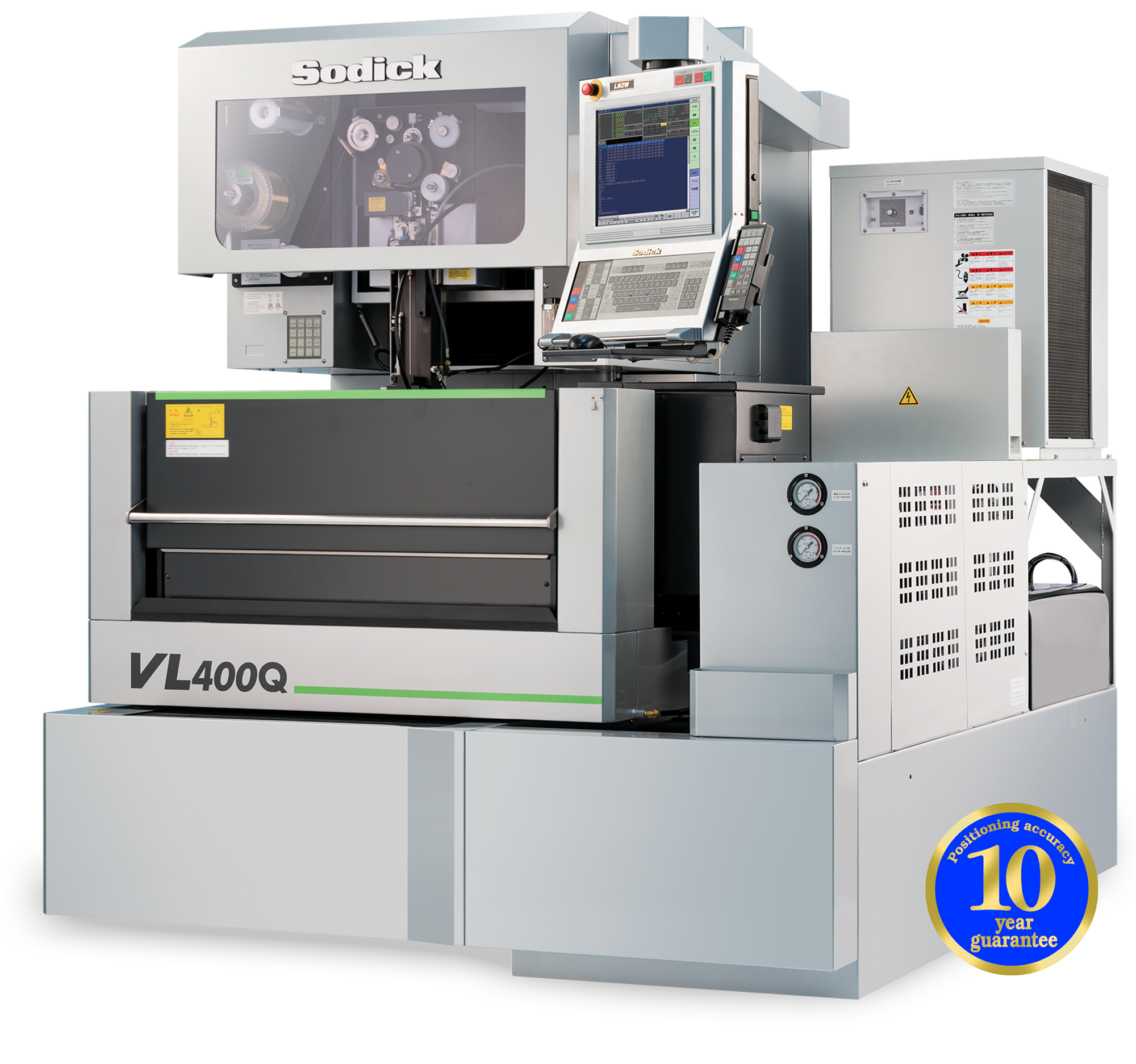

Sodick VL Series VL400Q

The VL400Q Wire EDM features Sodick’s Linear Motor Technology. The VL Series is an advanced line of performance Wire EDM. The medium sized VL400Q is well-suited for a wide range of machining applications.

Additional Information

X-axis Travel	15.75" (400 mm)
Y-axis Travel	11.81" (300 mm)
Z-axis Travel	8.66" (220 mm)
U, V - Axis Travel	3.15” x 3.15” (80 x 80 mm)
Wire Dia. Range	0.004” ~ 0.012” (0.10 ~ 0.30 mm)
Work Tank Inner Dim. W x D	33.85" x 27.16" (860 x 690 mm)
Max. Workpiece Weight	1,102 lbs (500 kg)
Dist. Floor to Table Top	35.43” (900 mm)
Machine Tool Dim. W x D x H	79.52" x 90.94" x 78.35" (2,020 x 2,310 x 1,990 mm)
Machine weight	5,952 lbs (2,700 kg)
