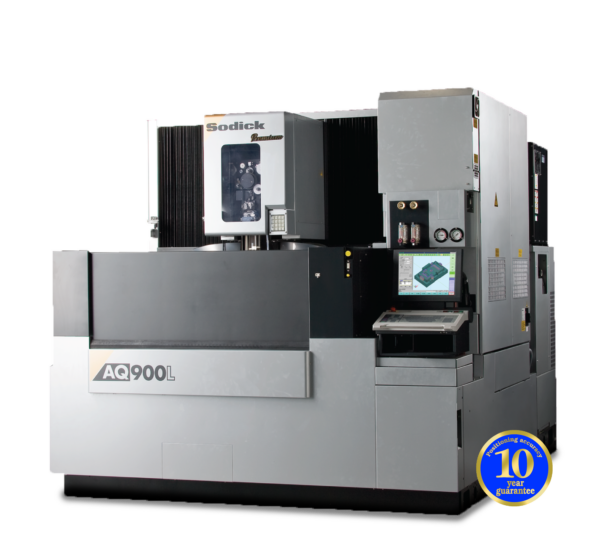

Sodick AQ Series AQ900L

The AQ900L Wire EDM features Sodick’s Linear Motor Technology. The AQ Series is Sodick’s line of large work area and extreme taper Wire EDMs. The AQ900L is a highly rigid machine which is ideal for machining large sized dies.

Additional Information

X-axis Travel	35.43" (900 mm)
Y-axis Travel	23.62” (600 mm)
Z-axis Travel	15.75" (400 mm)
U, V - Axis Travel	36.22” x 24.41” (920 x 620 mm)
Wire Dia. Range	0.006” ~ 0.012” (0.15 ~ 0.30 mm)
Work Tank Inner Dim. W x D	54.09” x 44.61” (1,374 x 1,133 mm)
Max. Workpiece Weight	4,409 lbs (2,000 kg)
Dist. Floor to Table Top	41.34” (1,050 mm)
Machine Tool Dim. W x D x H	93.70” x 124.02” x 94.29” (2,380 x 3,150 x 2,395 mm)
Machine weight	17,637 lbs (8,000 kg)
