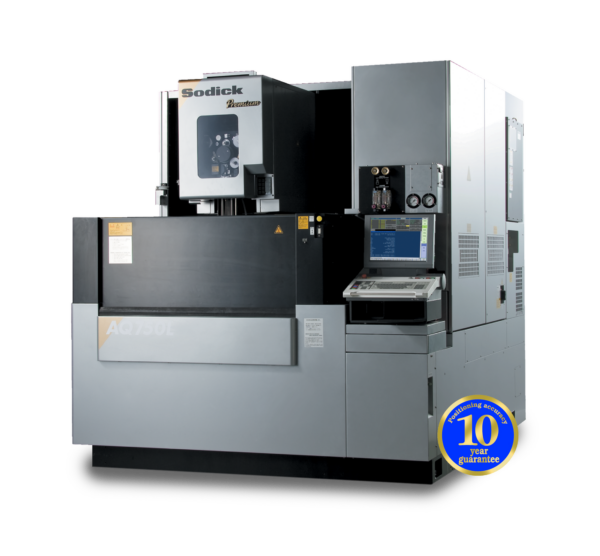

Sodick AQ Series AQ750LH

The AQ750LH Wire EDM features Sodick’s Linear Motor Technology. The AQ Series is Sodick’s line of large work area and extreme taper Wire EDMs. The AQ750LH features a larger Z height allowing for larger work pieces to be machined.

Additional Information

X-axis Travel	29.53” (750 mm)
Y-axis Travel	19.68” (500 mm)
Z-axis Travel	23.62” (600 mm)
U, V - Axis Travel	30.31” x 20.47” (770 x 520 mm)
Wire Dia. Range	0.006” ~ 0.012” (0.15 ~ 0.30 mm)
Work Tank Inner Dim. W x D	49.76” x 38.31” (1,264 x 973 mm)
Max. Workpiece Weight	3,307 lbs (1,500 kg)
Dist. Floor to Table Top	39.37” (1,000 mm)
Machine Tool Dim. W x D x H	82.68” x 110.24” x 92.52” (2,100 x 2,800 x 2,350 mm)
Machine weight	11,684 lbs (5,300 kg)
