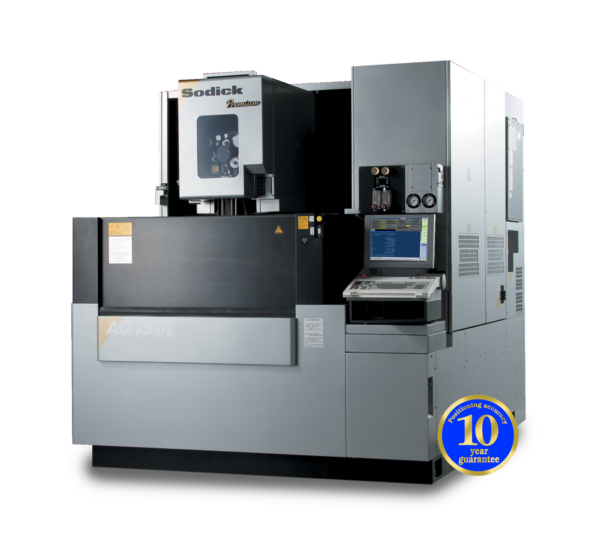

Sodick AQ Series AQ750L

The AQ750L Wire EDM Machine has all the advantages of linear technology and can machine workpieces up to 3,000 kg in weight. The AQ750L Wire EDM features Sodick’s Linear Motor Technology. The AQ Series is Sodick’s line of large work area and extreme taper Wire EDMs. The AQ750L features a fixed table design which allows for a workpiece with greater weight to be machined without affecting the table positioning or workpiece accuracy. Need a larger Z-Axis? Call and ask about our AQ750LH. The AQ750LH features a 23.62″ (600 mm) Z-Axis.

Additional Information

X-axis Travel	29.53” (750 mm)
Y-axis Travel	19.68” (500 mm)
Z-axis Travel	23.62” (600 mm)
U, V - Axis Travel	30.31” x 20.47” (770 x 520 mm)
Wire Dia. Range	0.006” ~ 0.012” (0.15 ~ 0.30 mm)
Work Tank Inner Dim. W x D	49.76” x 38.31” (1,264 x 973 mm)
Max. Workpiece Weight	3,307 lbs (1,500 kg)
Dist. Floor to Table Top	39.37” (1,000 mm)
Machine Tool Dim. W x D x H	82.68” x 110.24” x 92.52” (2,100 x 2,800 x 2,350 mm)
Machine weight	11,684 lbs (5,300 kg)
