AQ1200L

Categories: Wire EDM AQ Series Sodick
Tags:

About
Specifications

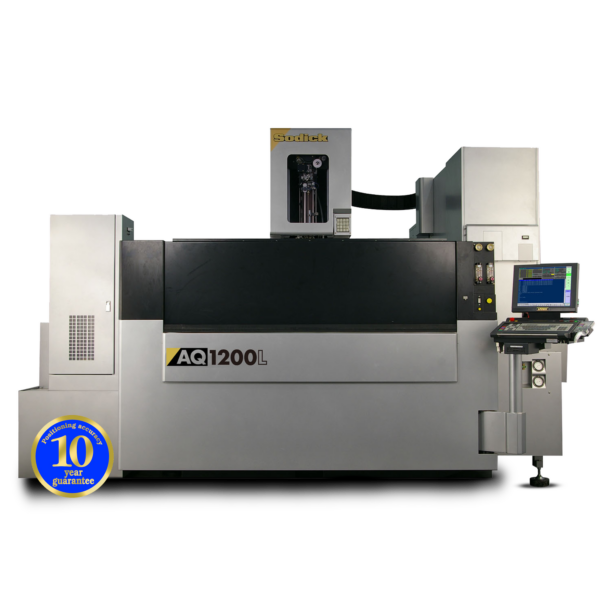

Sodick AQ Series AQ1200L

The AQ1200L is the second-largest Wire EDM Machine in the Sodick line-up.

Additional Information

X-axis Travel	47.24” (1,200 mm)
Y-axis Travel	31.50” (800 mm)
Z-axis Travel	15.75" (400 mm)
U, V - Axis Travel	48.03” x 32.28” (1,220 x 820 mm)
Wire Dia. Range	0.006” ~ 0.012” (0.15 ~ 0.30 mm)
Work Tank Inner Dim. W x D	71.81” x 55.12” (1,824 x 1,400 mm)
Max. Workpiece Weight	8,818 lbs (4,000 kg)
Dist. Floor to Table Top	47.24” (1,200 mm)
Machine Tool Dim. W x D x H	161.42” x 152.36” x 98.03” (4,100 x 3,870 x 2,490 mm)
Machine weight	24,251 lbs (11,000 kg)
