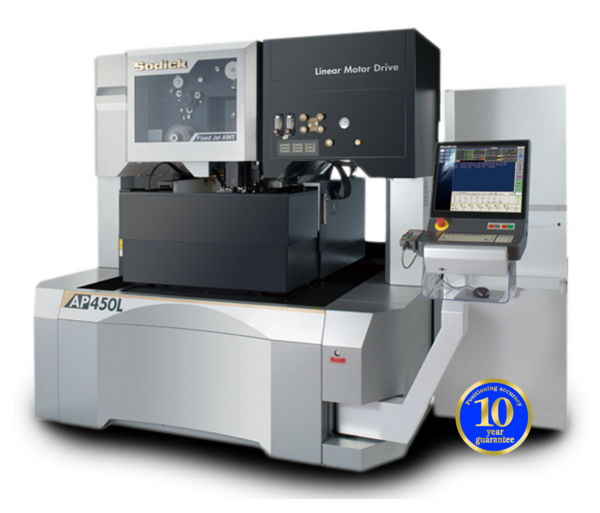

Sodick AP Series AP450L

The AP450L Wire EDM Machine is a bridge/gantry style machine that features great improvements in positioning and machining accuracy since it takes advantage of backlash free quick axis movement and features Eco-Cut O Technology.

Additional Information

X-axis Travel	17.72” (450 mm)
Y-axis Travel	11.81" (300 mm)
Z-axis Travel	5.91” (150 mm)
U, V - Axis Travel	1.38” x 1.38” (35 x 35 mm)
Wire Dia. Range	0.002″ ~ 0.010″ (0.05 ~ 0.25 mm)
Max. Workpiece Weight	220.5 lbs (100 kg)
Dist. Floor to Table Top	43.31” (1,100 mm)
Machine Tool Dim. W x D x H	90.16" x 70.08" x 85.43" (2,290 x 1,780 x 2,170 mm)
Machine weight	14,109.6 lbs (6,400 kg)
