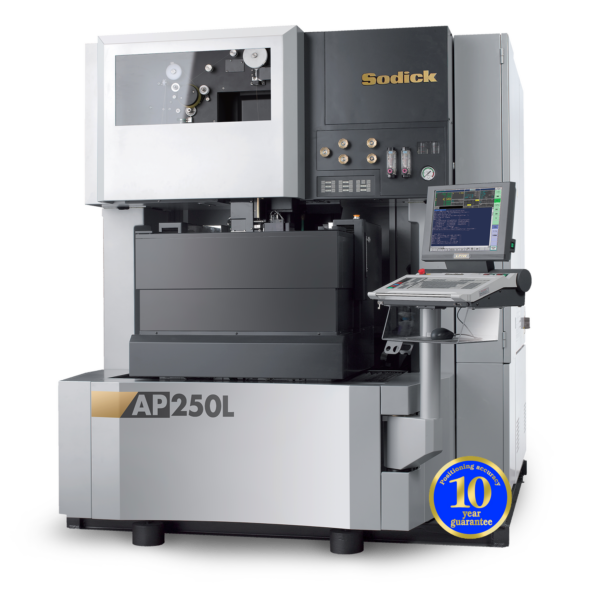

Sodick AP Series AP250L

The AP250L Wire EDM Machine features Sodick’s new Eco-Cut O Technology. When using this technology, since the AP250L is an oil based machine, you can machine carbide and completely eliminate cobalt depletion.

Additional Information

X-axis Travel	9.84” (250 mm)
Y-axis Travel	5.91” (150 mm)
Z-axis Travel	4.72” (120 mm)
U, V - Axis Travel	1.38” x 1.38” (35 x 35 mm)
Wire Dia. Range	0.001” ~ 0.008” (0.03 ~ 0.20 mm)
Max. Workpiece Weight	176.4 lbs (80 kg)
Dist. Floor to Table Top	42.52” (1,080 mm)
Machine Tool Dim. W x D x H	79.33” x 99.09” x 82.48” (2,015 x 2,517 x 2,095 mm)
Machine weight	8,223 lbs (3,730 kg)
