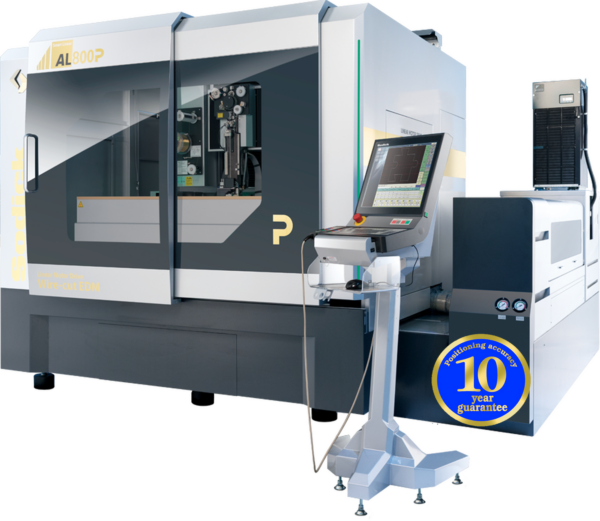

Sodick ALP Series – AL800P

Novel Construction and System That Minimize Thermal Displacement. Achieves Higher-precision and Faster Machining of Large Parts and Molds. Our largest EDM in the ALP Series

Additional Information

X-axis Travel	31.50" (800 mm)
Y-axis Travel	23.62” (600 mm)
Z-axis Travel	9.84” (250 mm)
U, V - Axis Travel	5.91” x 5.91” (150 x 150 mm)
Max. Taper Angle	± 25° plate thickness: 5.12" (130 mm)
Max. Workpiece Dim. (flushing)	49.21" x 40.16" x 9.45" (1250 x 1020 x 240 mm)
Wire Electrode Dia.	.002" ～.012" (0.05 ～ 0.30 mm) *1
Wire Tension (N)	3 ～ 23
Max. Wire Feed Rate	16.54 in/sec (420 mm/sec)
Dist. Floor Surface to Table	39.17" (995 mm)
Machine Tool Dim. W x D x H	129.92" x 143.70" x 95.08" (3300 x 3650 x 2415 mm)
Total Unit Weight	12,676 lbs (5750 kg)
Total Power Input	3-phase, 50/60 Hz, 13 kVA
