AL400P iGE

Categories: Wire EDM ALP Series Sodick
Tags:

About
Specifications

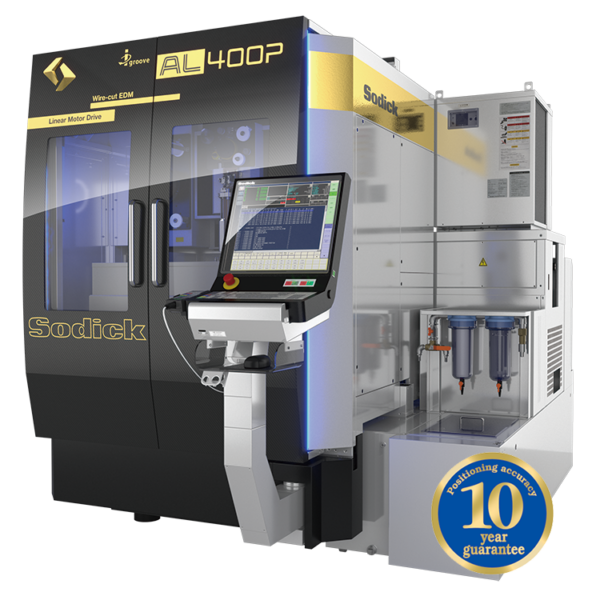

Sodick ALP Series – AL400P iGE

Achieves high precision machining while suppressing the cumulative pitch error to the utmost in progressive press dies and etc. where high precision is accelerating.

Additional Information

X-axis Travel	15.78" (400 mm)
Y-axis Travel	11.81" (300 mm)
Z-axis Travel	9.84” (250 mm)
U, V - Axis Travel	5.91” x 5.91” (150 x 150 mm)
Max. Taper Angle	±25° plate thickness: 5.12" (130 mm)
Max. Workpiece Dim. (flushing)	23.62" x 18.50" x 9.49" (600 x 470 x 240 mm)
Max. Workpiece Dim. (submerged)	23.62" x 18.50" x 9.49" (600 x 470 x 240 mm)
Wire Electrode Dia.	.002" ～.012" (0.05 ～ 0.30 mm) *1
Wire Tension (N)	3 ～ 23
Max. Wire Feed Rate	16.54 in/sec (420 mm/sec)
Dist. Floor Surface to Table	39.17" (995 mm)
Machine Tool Dim. W x D x H	83.27" x 98.43" x 87.80" (2,115 x 2,500 x 2,230 mm) *2
Total Unit Weight	7,496 lbs (3,400 kg) *3
Total Power Input	3-phase 50/60 Hz　13 kVA
