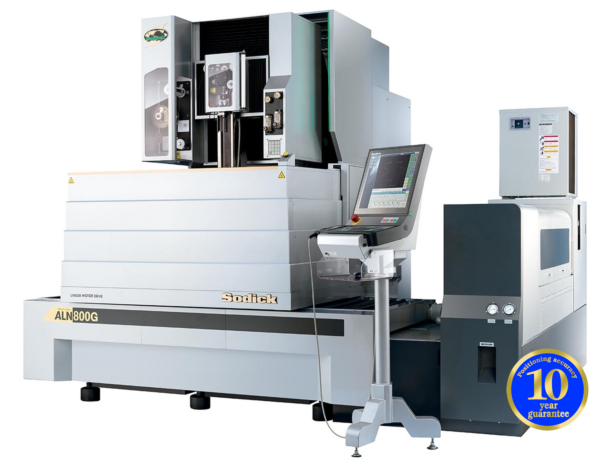

Sodick ALN Series ALN800G

The ALN800G, Rigid Linear Motor Driven High-Performance Wire EDM Machine incorporates Sodick’s next-generation SPW (Smart Pulse Wire) control with the Smart Pulse Generator and technologies that improve cutting speed and precision. The ALN also streamlines the control design, combining the best functions of both tablet interface and classic interface into a highly functional work display, improving processing responsiveness.

Additional Information

X-axis Travel	31.50" (800 mm)
Y-axis Travel	23.62” (600 mm)
Z-axis Travel	19.69” (500 mm)
U, V - Axis Travel	7.87” x 7.87” (200 x 200 mm)
Wire Dia. Range	0.004” ~ 0.012” (0.05 ~ 0.30 mm)
Work Tank Inner Dim. W x D	59.05” x 40.94” (1,500 x 1,040 mm)
Max. Workpiece Weight	6,614 lbs (3,000 kg)
Dist. Floor to Table Top	39.17” (995 mm)
Machine Tool Dim. W x D x H	130.31” x 132.28” x 106.10” (3,310 x 3,360 x 2,695 mm)
Machine weight	12,125 lbs (5,550 kg)
