Name: ALN600GH
SKU: ALN600GH

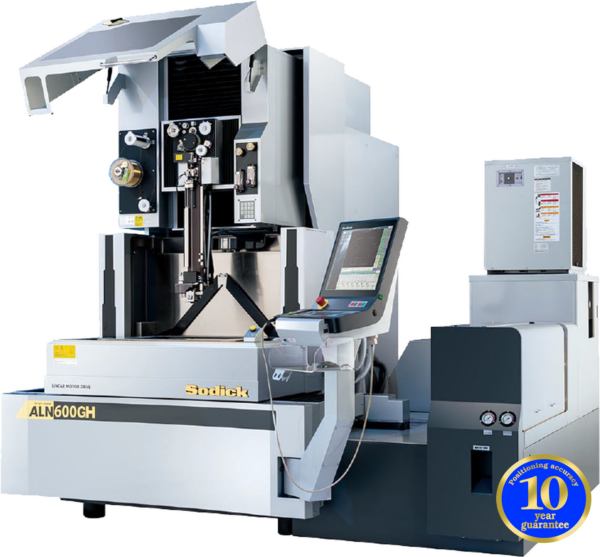

Sodick ALN Series ALN600GH

The ALN600GH features an automatic drop-tank for easy part setup, as well as Sodick’s latest SmartPulse Wire (SPW) Control. Onboard “Intelligent Qvic” programming software is included for easy programming from solid models or dxf files. All Sodick Wire and Sinker EDMs utilize Sodick’s patented Rigid Linear Motor for non-contact axis movement free from friction, wear, and backlash. Since 2006, Sodick machines come with a 10 year positioning accuracy guarantee, ensuring that new ALN machines will maintain the positioning accuracy identified on their factory inspections for the next 10 years.

Additional Information

X-axis Travel	23.62” (600 mm)
Y-axis Travel	15.75" (400 mm)
Z-axis Travel	19.69” (500 mm)
U, V - Axis Travel	5.91” x 5.91” (150 x 150 mm)
Wire Dia. Range	0.004" ~ 0.012" (0.1 ~ 0.3 mm)
Work Tank Inner Dim. W x D	41.34” x 27.95” (1,050 x 710 mm)
Max. Workpiece Weight	2,205 lbs (1,000 kg)
Dist. Floor to Table Top	39.17” (995 mm)
Machine Tool Dim. W x D x H	111.02" x 105.71" x 104.17" (2,820 x 2,685 x 2,646 mm)
Machine weight	9,920 lbs (4,500 kg)
