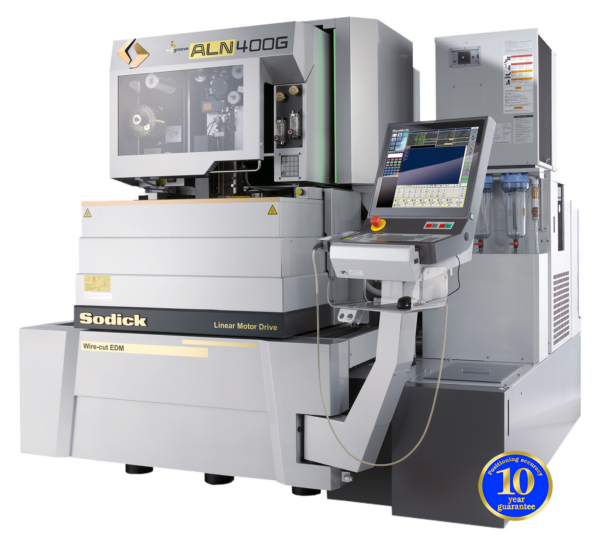

Sodick ALN Series ALN400G iGE

The ALN400G iGE, a rigid linear motor driven high-performance Wire EDM machine, improves cutting speed and precision. How? By incorporating Sodick’s next-generation Smart Pulse Wire control with the Smart Pulse Generator. The ALN also streamlines the control design, combining the best functions of both tablet interface and classic interface into a highly functional work display, improving processing responsiveness.

Additional Information

X-axis Travel	15.75" (400 mm)
Y-axis Travel	11.81" (300 mm)
Z-axis Travel	9.84” (250 mm)
U, V - Axis Travel	5.91” x 5.91” (150 x 150 mm)
Wire Dia. Range	0.002” ~ 0.012” (0.05 ~ 0.30 mm) (With Available Options)
Work Tank Inner Dim. W x D	33.45” x 24.01” (850 x 610 mm)
Max. Workpiece Weight	1,102 lbs (500 kg)
Dist. Floor to Table Top	39.17” (995 mm)
Machine Tool Dim. W x D x H	86.22" x 95.47" x86.81" (2190 x 2425 x 2205 mm)
Machine weight	7,385 lbs (3,350 kg)
