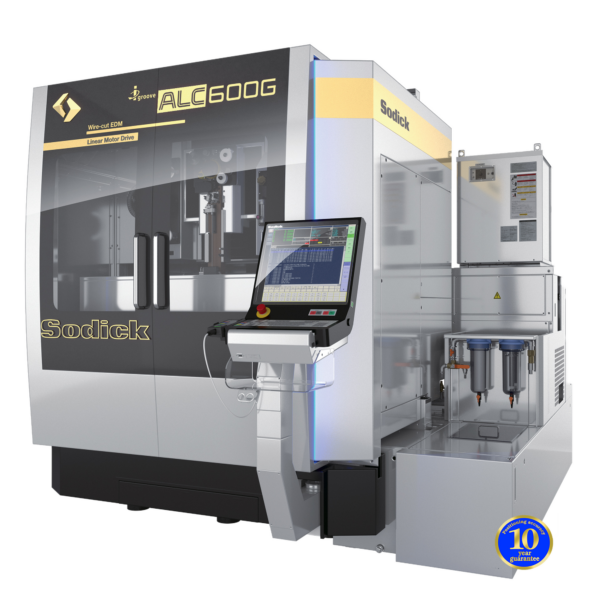

ALC600G-iGE_Right_nobg_10year_df2c0d3bb1bc315a530eb3de2cbf821e-600x600

ALC600G iGE

Categories: Wire EDM ALC Series Sodick
Tags:

About
Specifications

Sodick ALC Series ALC600G iGE

The ALC600G iGE combines Sodick’s most advanced generator with CE certified safety specs and a fully enclosed design.

Additional Information

X-axis Travel	23.62” (600 mm)
Y-axis Travel	15.75" (400 mm)
Z-axis Travel	13.78” (350 mm)
U, V - Axis Travel	5.91” x 5.91” (150 x 150 mm)
Wire Dia. Range	0.002” ~ 0.012” (0.05 ~ 0.30 mm) (With Available Options)
Work Tank Inner Dim. W x D	41.34” x 27.95” (1,050 x 710 mm)
Max. Workpiece Weight	2,204 lbs (1,000 kg)
Dist. Floor to Table Top	39.17” (995 mm)
Machine Tool Dim. W x D x H	98.23” x 113.98” x 92.32” (2,495 x 3,500 x 2,345 mm)
Machine weight	10,141 lbs (4,600 kg)
