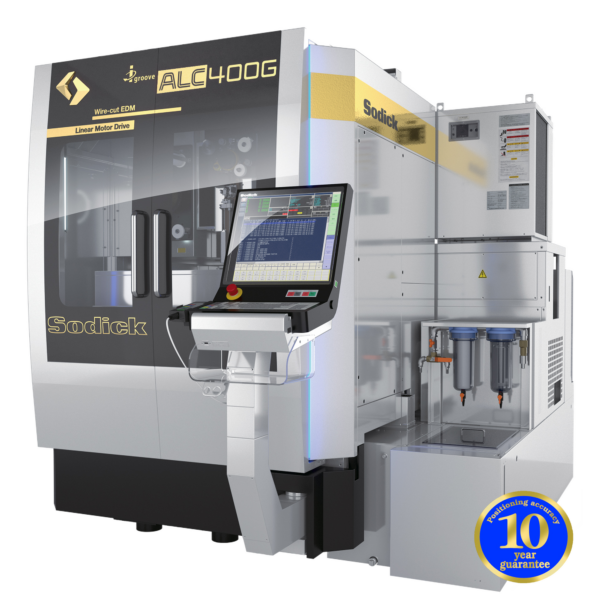

ALC400G iGE

Categories: Wire EDM ALC Series Sodick
Tags:

About
Specifications

Sodick ALC Series ALC400G iGE

The ALC400G iGE combines Sodick’s most advanced generator with CE certified safety specs and a fully enclosed design.

Additional Information

X-axis Travel	15.75" (400 mm)
Y-axis Travel	11.81" (300 mm)
Z-axis Travel	9.84” (250 mm)
U, V - Axis Travel	5.91” x 5.91” (150 x 150 mm)
Wire Dia. Range	0.002” ~ 0.012” (0.05 ~ 0.30 mm) (With Available Options)
Work Tank Inner Dim. W x D	33.45” x 24.01” (850 x 610 mm)
Max. Workpiece Weight	1,102 lbs (500 kg)
Dist. Floor to Table Top	39.17” (995 mm)
Machine Tool Dim. W x D x H	83.27” x 98.43” x 87.80” (2,115 x 2,500 x 2,230 mm)
Machine weight	7,496 lbs (3,400 kg)
