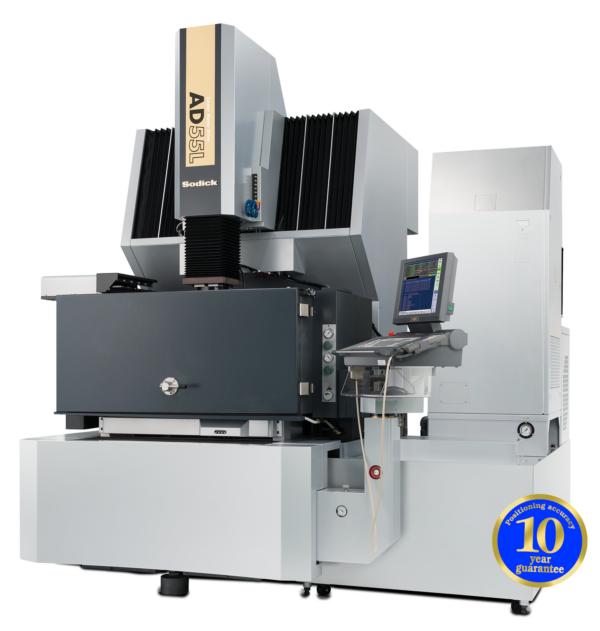

AD55l10yr_df2c0d3bb1bc315a530eb3de2cbf821e-600x631

AD55L

Categories: AD Series Sinker EDM Sodick
Tags:

About
Specifications

Sodick AD Series – AD55L

The NEW AD55L Sinker EDM Machine includes high speeds and rapid acceleration of the rigid linear motor drives.

Additional Information

X-axis Travel	23.62” (600 mm)
Y-axis Travel	15.75" (400 mm)
Z-axis Travel	15.75" (400 mm)
Work Table Size	29.53” x 21.65” (750 x 550 mm)
Work Tank Size	47.25” x 31.50” x 19.69” (1,200 x 800 x 500 mm)
Fluid Level	6.69” ~ 17.72” (170 ~ 450 mm)
Work Tank Capacity	124 g (470 L)
Dist. Floor to Table Top	35.43” (900 mm)
Machine Dim.	91.93” x 91.54” x 107.09” (2,335 x 2,325 x 2,720 mm)
Max. Workpiece Weight	2,204 lbs (1,000 kg)
Machine weight	10,140 lbs (4,600 kg)
