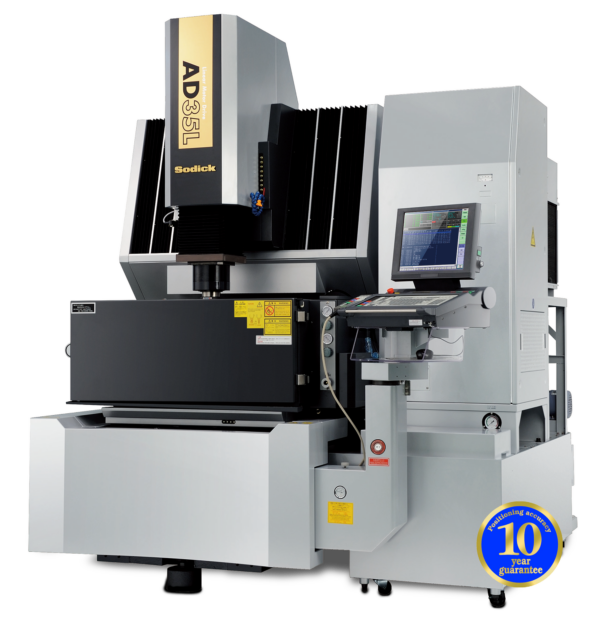

ad35l10yr_df2c0d3bb1bc315a530eb3de2cbf821e-600x624

AD35L

Categories: AD Series Sinker EDM Sodick
Tags:

About
Specifications

Sodick AD Series – AD35L

The AD35L Sinker EDM Machine allows for optimum performance at high-speeds and rapid acceleration of the linear motor drives.

Additional Information

X-axis Travel	13.78” (350 mm)
Y-axis Travel	9.84” (250 mm)
Z-axis Travel	10.63” (270 mm)
Work Table Size	23.62” x 15.74” (600 x 400 mm)
Work Tank Size	38.39” x 21.85” x 13.78” (975 x 555 x 350 mm)
Fluid Level	6.69” ~ 11.81” (170 ~ 300 mm)
Work Tank Capacity	47.55 g (180 L)
Dist. Floor to Table Top	31.89” (810 mm)
Machine Dim.	74.61” x 76.97” x 92.52” (1,895 x 1,955 x 2,350 mm)
Max. Workpiece Weight	1,212 lbs (550 kg)
Machine weight	7,054 lbs (3,200 kg)
