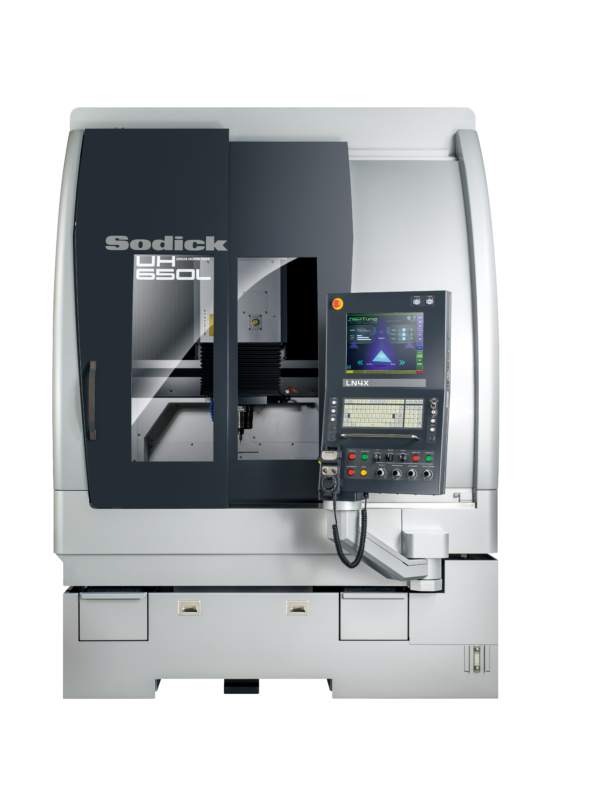

UH650L_00152_09cmyk-600x802

UH650L

Categories: UH Series High Speed Milling Sodick
Tags:

About
Specifications

Sodick UH Series – UH650L

The UH650L is Sodick’s most advanced High Speed Mill, well-suited for a variety of applications.

Additional Information

X-axis Travel	24.41” (620 mm)
Y-axis Travel	19.69" (500 mm)
Z-axis Travel	11.81” (300 mm)
Drive System	Linear Motors
Linear Scales	.0000012” (.03 μm) Scale Feedback
Table to Spindle Dist.	5.91” x 17.72” (150 ~ 450 mm)
Spindle RPM	6,000 ~ 40,000 (60,000 option available on E25)
Tool Holder Type	HSK-E32 (HSK-E25 options available)
Max Tool Dia.	.236” (6 mm)
X, Y, Z Max Acceleration	1 G
Rapid Feed Rate	1,417.3 ipm (36 m/min)
Table size	23.62” x 15.75” (600 x 400 mm)
Max. Weight on Table	330.7 lbs (150 kg)
Machine Dim.	71.85” x 125.98” x 100.0” (1,825 x 3,200 x 2,540 mm)
Machine weight	17,637 lbs (8,000 kg)
