HM SERIES – HORIZONTAL CNC MACHINES

Horizontal Mills designed for maximum efficiency

These economical, 3-axis and 4-axis large travel horizontal CNC milling machines have an 8,000 rpm motorized spindle that is equipped for both high and low-end torque operations. The large, front and side access doors provide maximum operator efficiency. With fast rapids, large work cube, smart frame design, and UltiMotion technology, complex production parts can be CNC machined efficiently and accurately. Hurcos’ horizontal milling machines increase shop productivity with a rotary torque table, such as the table added to the smart design of the HM1700i CNC machining center.

Additional Information

X, Y, Z Axis Travel	67 x 47 x 35 in (1700 x 1200 x 900 mm)
B Axis Travel	Continuous
Table size	65 x 33 in (1650 x 840 mm)
Max. Weight on Table	4,410 lbs (2,000 kg)
Spindle Nose to Table	8 / 43.4 in (203 / 1102 mm)
T-slot size	7 x .7 in on 4.92 in centers (7 x 17 on 124 mm centers)
Max. spindle speed	8000 rpm
Spindle power (peak)	298 ft. lbs @ 625 rpm (403 Nm @ 625 rpm)
Spindle Torque Peak	75 hp (56 kW)
Tool Type	CAT 50 (CAT/BT 50)
Number of Tools	30
Max. tool diameter	4.7 in (120 mm)
Max. tool length	11.8 in / 300 mm
Max. tool weight	44 lbs (20 kg)
Tool to tool ATC time	3.7 sec
Rapid Traverse X,Y,Z Axis	1181, 1181, 787 in/min (30, 30, 20 m/min)
Max. Programmable Feedrate	787 in/min (20 m/min)
B Axis Max RPM	50 rpm
Max. Operating Floor Space	237.6 x 179 in (6036 x 4548 mm)
Machine Height	141 in (3,584 mm)
Machine weight	44517 lbs (20235 kg)
Power rating / full load KVA	152 KVA

CNC Machinery & Service You Can Trust

5430 Gatewood Drive

(248) 494-7335

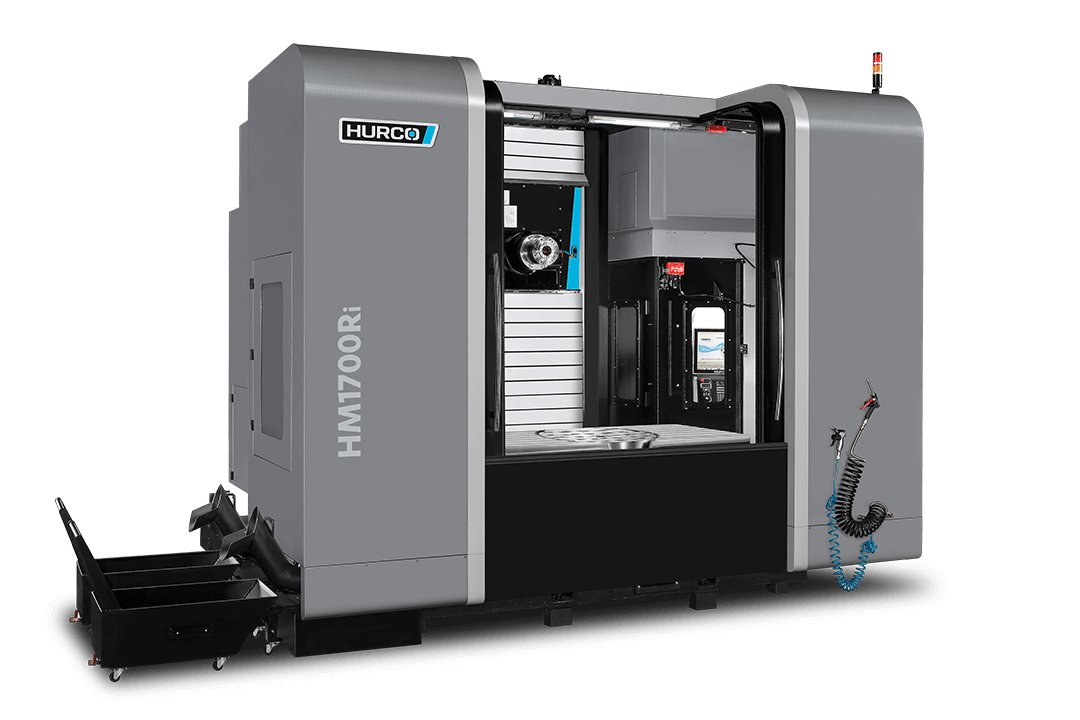

HM1700Ri
