HBMX SERIES – HORIZONTAL BORING MILLS

Horizontal Boring Mills efficiently designed to have a surprisingly small footprint and large work envelope

The HBMX horizontal boring machines have 2-speed geared-head spindles, hardened box ways, and they are packaged to include features needed for typical applications—such as a programmable quill that allows you to use shorter tools, a contouring 4th axis rotary table (not just positional), linear glass scales to maintain thermal stability and increase accuracy, CTS, and a 60-tool ATC.

Additional Information

X, Y, Z, W Axis Travel	118.1 x 70.1 x 66.9 x 19.7 in (3,000 x 1,780 x 1,650 x 500 mm)
Table size	56.7 x 63 (1,440 x 1,600 mm)
Max. Weight on Table	13,889 lbs (6,300 kg)
T-slot size	9 x .9 in on 6.3 in centers (9 x 24 mm on 160 mm centers)
Floor to Table Surface	42.1 in (1,070 mm)
Max. spindle speed	8-454 rpm Low Gear // 8-2,500 rpm
Spindle power (peak)	40.2 HP (30 kW)
Spindle Torque Peak	1,106 ft. lbs. (low gear) // 303.9 ft-lbs. (high gear) (1500 Nm (low gear) // 412 Nm (high gear)
Tool Type	CAT 50
Number of Tools	60 (90 opt)
Max. tool diameter	4.7 in (120 mm)
Max. tool length	15.7 in (400 mm)
Max. tool weight	55.1 lbs (25 kg)
Rapid Traverse X,Y,Z Axis	393.7 ipm (10 m/min)
Rapid Traverse Rate W-Axis	157.5 ipm (4.0 m/min)
Max. Programmable Feedrate	299.2 ipm (7.6 m/min (W 4.0 m/min)
Coolant Capacity	132.1 gallons (500 liters)

CNC Machinery & Service You Can Trust

5430 Gatewood Drive

(248) 494-7335

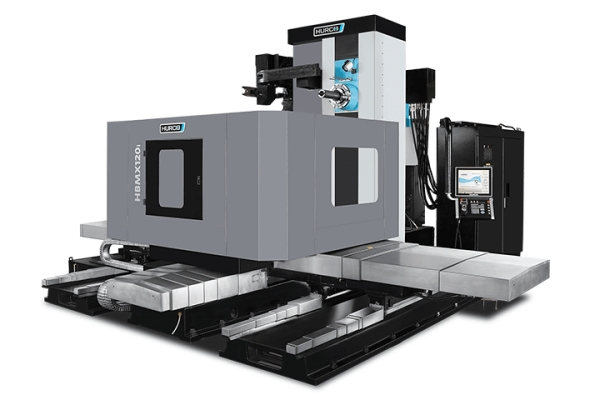

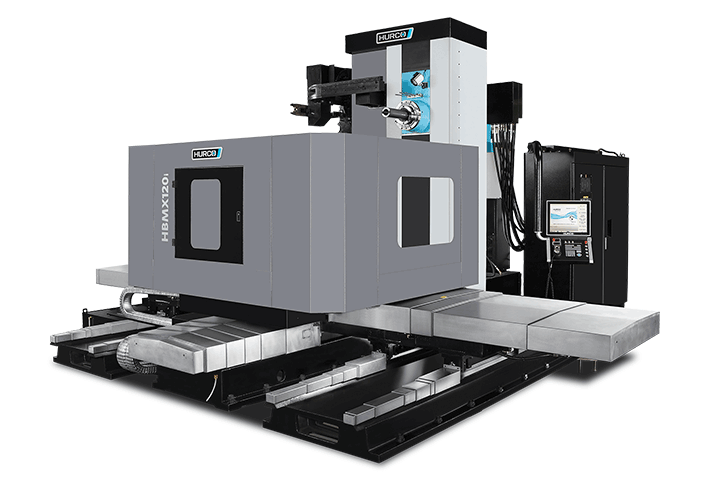

HBMX120i
