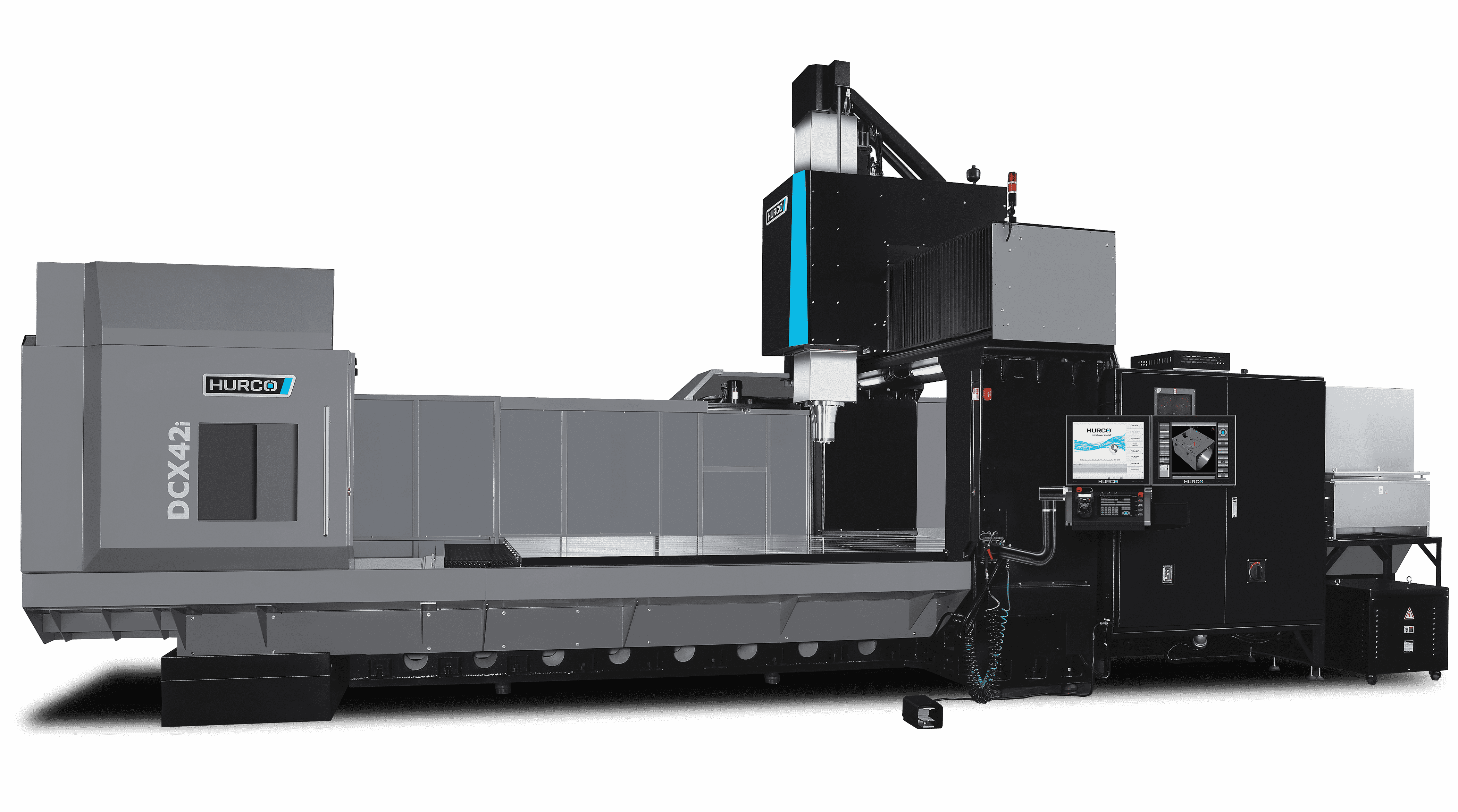

Name: DCX42i
SKU: DCX42i

Double column CNC for the BIG STUFF

The DCX Series of Double Column CNC machining centers were created due to customer requests—customers who already knew the value of Hurco and needed larger machines for aerospace and energy parts. Our 2-meter, 3-meter, and 4-meter VMCs are the biggest machine tools available with the powerful Hurco control.

Additional Information

X, Y, Z Axis Travel	165.4 x 102.4 x 43.3 in (4200 x 2600 x 1100 mm)
Spindle Nose to Table	6.30 / 49.60 in (160 / 1,260 mm)
Table size	157.5 x 82.7 in (4000 x 2100 mm)
Max. Weight on Table	35,274 lb (16,000 kg )
T-slot size	9 x 0.87 in (9 x 22 x 220 mm)
Distance b/w Columns	100 in (2540 mm)
Max. spindle speed	6000 rpm (6000 rpm (10000 option)
Spindle power (peak)	107 hp (80 kW)
Spindle Torque Peak	564 ft. lbs @ 1,000 rpm (764 Nm @ 1,000 rpm)
Tool Type	CAT, DIN 50 (CAT/BT 50)
Max. tool weight	33 lb (15 kg)
Number of Tools	40
Max. tool diameter	4.9 in (125 mm)
Max. tool length	11.8 in / 300 mm
Rapid Traverse X,Y,Z Axis	492, 492, 394 in/min (12.5, 12.5, 10 m/min)
Max. Programmable Feedrate	394 in/min unlimited* (10 m/min)
Max. Operating Floor Space	485.3 x 264.4 in (12326 x 6716 mm)
Machine Height	196.3 in (4985 mm)
Machine weight	112215 lb (50900 kg)
Power rating / full load KVA	100 KVA
