Name: BX50i
SKU: BX50i

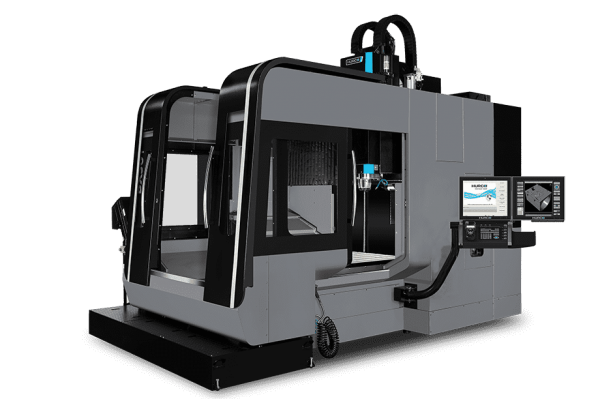

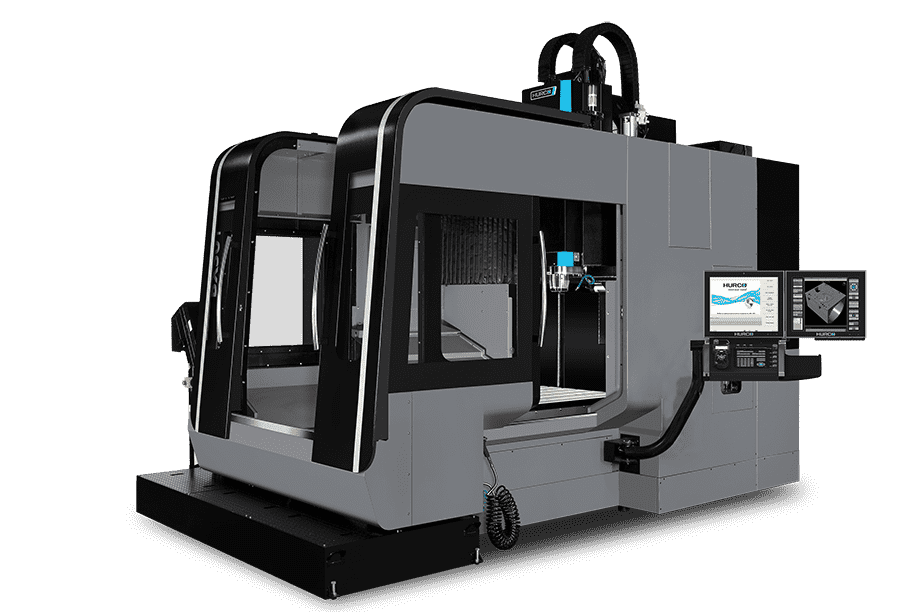

High-Speed Double-Column Bridge Design CNC Machining Centers

The stability of the double-column, the ladder design of the Z-axis, and the overall weight of the BX high-speed milling machines provide exceptional accuracy, thermal compensation, and outstanding surface finish capabilities. Equipped with an 18,000 rpm HSK 64A spindle and Hurco’s patented UltiMotion technology, the BX series of CNC machines is designed for high speeds and tight tolerances.

Additional Information

X, Y, Z Axis Travel	53.2 x 37.4 x 23.6 in (1350 x 950 x 600 mm)
Spindle Nose to Table	7.08 / 30.7 in (180 / 780 mm)
Table size	59.1 x 37.8 in (1,500 x 960 mm)
Max. Weight on Table	5,512 lbs (2,500 kg)
T-slot size	8 x 0.87 in (6 x 22 x 160 mm)
Max. spindle speed	18000 rpm
Spindle power (peak)	47 hp (35 kW)
Spindle Torque Peak	88 ft. lbs @ 2,800 rpm (119 Nm @ 2,800 rpm)
Tool Type	HSK 63 (HSK63A)
Max. tool weight	15.4 lb (7 kg)
Number of Tools	30 (30 (50 option)
Max. tool diameter	3 in (76 mm)
Max. tool length	11.8 in / 300 mm
Rapid Traverse X,Y,Z Axis	1417 in/min (36 m/min)
Max. Programmable Feedrate	1417 in/min (36 m/min)
Max. Operating Floor Space	182.2 x 175.7 in (4627 x 4463 mm)
Machine Height	140.2 in (3560 mm)
Machine weight	28,600 lbs (13,000 kg)
