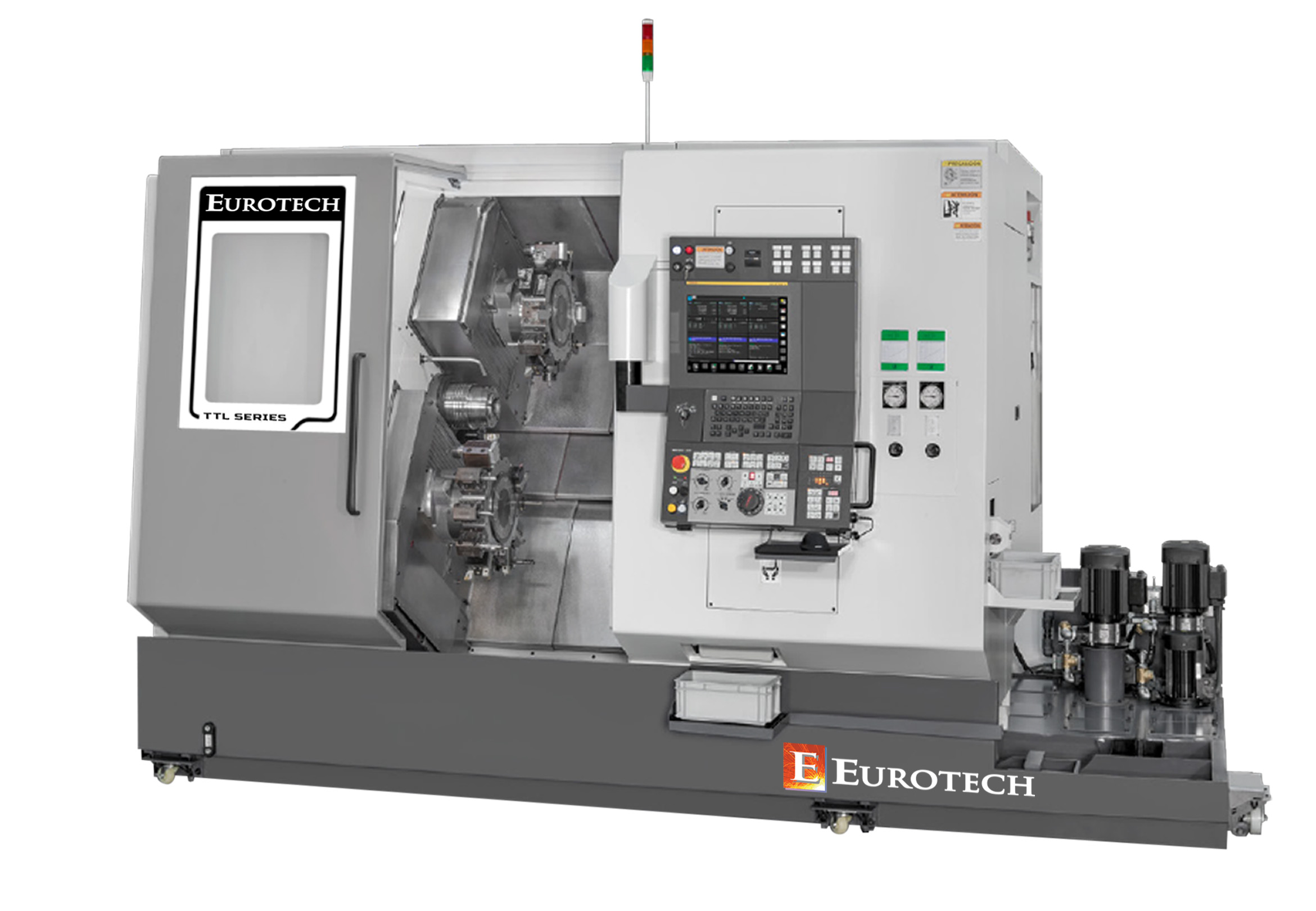

CMZ TTL Series TT-12 Multi Turret Lathe

24 positions turret with hydraulic clamping. The TTL Series multi-turret lathes, have turrets hydraulically clamped with curvic couplings for accurate indexing and rigidity. The turret has two motors. The first one is used for indexing the turret (indexing time 30º in 170 ms). The second one is an integrated motor which drives the live tooling at 14 kW, 42 Nm and 12000 rpm. The turret is fully cooled with oil, allowing continuous work at 12000 rpm.

Integrated spindles with synchronous motors

Acceleration time reduced by half

The main highlights of the spindles in TTL lathe are the following:

  • Equipped with high power and torque synchronous motors (35.5 kW and 205 Nm). Acceleration time reduced by half (TTL-52 accelerates to 5000 rpm in 1.3 seconds)
  • The synchronous motor rotor is made of permanent magnets. This means that there is no current circulation and that the spindle axis remains cold.
  • The integrated synchronous motor as well as the bearings are oil-cooled and provide greater thermal stability.
  • The bearings mounted on the spindle are roller and provide great robustness to withstand substantial impacts and high damping for vibrations.

The movements in the X3 and Z3 axes allow exclusive functionalities:

  • Operating with tailstock (option).
  • 3 tools working simultaneously.
  • Machining very long components thanks to the significant reduction in interferences

Operating simultaneously with tailstock and sub-spindle

Optionally, the machine could incorporate a tailstock attached to the sub-spindle. Thanks to this, it is possible to machine between the chucks or the main chuck and the tailstock while the part is finished in the sub-spindle.

3 tools working simultaneously

The machine has two turrets, but the CNC has 3 channels where 3 programs can be run simultaneously, each of them with its own offsets. The sub-spindle (X3 and Zaxes) can work in the third channel of the CNC in a compound mode as well with the upper turret as with the lower one. In other words, two tools can be placed in both turrets (upper and lower) in order to machine with three tools simultaneously.

Additional Information

Maximum diam. swing allowed (mm)

Max. turning diameter (mm)

Distance between spindle and tailstock center (mm)

Distance between center of spindles (mm)

X1 / X2 axis travel

X3-axis travel (mm)

Z1 / Z2 axis travel (mm)

Z3 axis travel (mm)

Y-axis travel (mm)

Fast feedrate X (m/min)

Fast feedrate Z (m/min)

Fast feedrate Y (m/min)

Axis acceleration

Maximum speed (rpm)

Drawtube bore (mm)

Chuck diameter (mm)

Max. bar dia. (mm)

Spindle power (kw)(max./S2 25%/S1)

Turning torque (NM)(max/S# 25%/S1)

Morse taper

Tailstock travel (mm)

Max. force (kgf)

Number of positions

Section of tools (mm)

Changing time

Interlocking force at 45 bar (kgf)

Number of driven tools

Turning speed (rpm)

Power (KW) (max./S1)

Maximum torque (nw)(max/S1)

Max. speed (rpm)

Bearing outside dia. (mm)

Bearing inside dia. (mm)

Spindle nose

Spindle inside dia. (mm)

Bar dia (mm)

Chuck dia (mm)

Chuck bore (mm)

Power (KW) (max./ S3 25%/S1)

Turning torque (Nm) (max./S3 25% S1)

Coolant tank (gal) - Side

Coolant tank (gal) - Rear

Hydraulic oil tank (liters)

Lubrication oil tank (liters)

Installed power KVA

Functioning voltage

Environmental temperature

Total weight (lb)

Dimensions (mm)

Inner volume (ft3)
