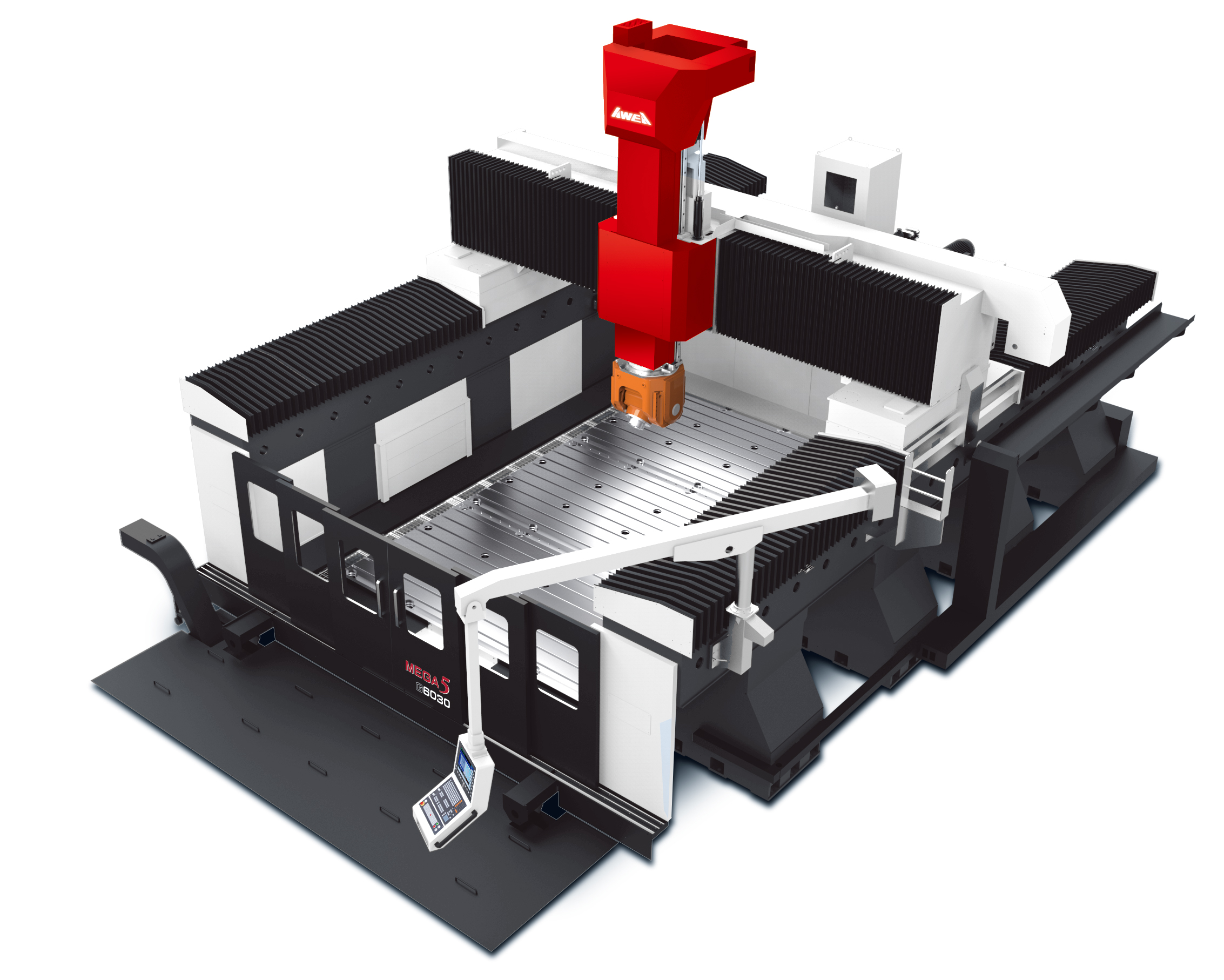

The AWEA MEGA5 G6047

Maximum Performance 5-Axes Machining Center
AWEA decades experience in bridge type machining center machine building and technology development combined with worldwide leading five axes head created the brand new MEGA5 series five axes bridge type machining centers. MEGA5 series are equipped with X, Y, Z, B, C five axes simultaneous movement control; vertical, horizontal machining and even intricate shape parts machining can be easily completed in one set up. Thus greatly increases the cutting capability and efficiency of large parts to cope with machining requirements in all kinds of industry.

Both HSK-A100 12,000 rpm high torque heavy duty spindle and HSK-A63 24,000 rpm high speed spindle are available for heavy cutting or fine finishing. Fixed columns or gantry type solutions are available for selection based on work piece size or weight. Comprehensive cutting solutions provide you best solution for upgrading capability required for high value added products.

Additional Information

X-axis Travel	6,000 mm
Y-axis Travel	4,700 mm
Z-axis Travel	1,200 mm ( opt. 1,400 mm )
Distance between columns	5,800 mm
Dist. from spindle nose to table top	TCH-30F = 200 ~ 1,400 mm ( opt. 200 ~ 1,600 mm ) TCH-20F = 355 ~ 1,555 mm ( opt. 355 ~ 1,755 mm )
Distance from 90° spindle center line to table	TCH-30F = 550 ~ 1,750 ( opt. 550 ~ 1,950 mm ) TCH-20F = 665 ~ 1,865 mm ( opt. 665 ~ 2,065 mm )
Table size	6,000 x 4,800 mm
T-slot	28 x 200 mm
Table load capacity	2,500 kg/m²
Spindle taper	HSK-A100*2
Spindle motor (S1/S6 40%)	40 / 50 kW*2
Max. spindle speed	12,000 rpm*2
X-axis rapid feed rate	20 m / min.
Y-axis rapid feed rate	12 m / min.
Z-axis rapid feed rate	10 m / min.
Cutting feed rate	10 m/min.
Tool magazine capacity	20 T
Max. tool length	350 mm
Max. tool weight	15 kg
Max. tool diameter / adj. pocket empty	Ø 160 / Ø 230 mm
Positioning accuracy (JIS B 6338)	± 0.010 mm / Full Travel
Positioning accuracy ( VDI 3441 )	P = 0.035 mm /Full Travel
Repeatability ( JIS B 6338 )	± 0.003 mm
Repeatability ( VDI 3441 )	Ps = 0.026 mm
Coolant tank capacity	1,900 liter
Lubrication oil tank capacity	6 liter
Hydraulic tank capacity	150 liter
Machine weight	119,500 kg
Max. work-piece dimension - Length( X-axis )	6,000 mm
Max. work-piece dimension - Width( Y-axis )	4,700 mm
Max. work-piece dimension - Height( Z-axis )	1,050 mm
