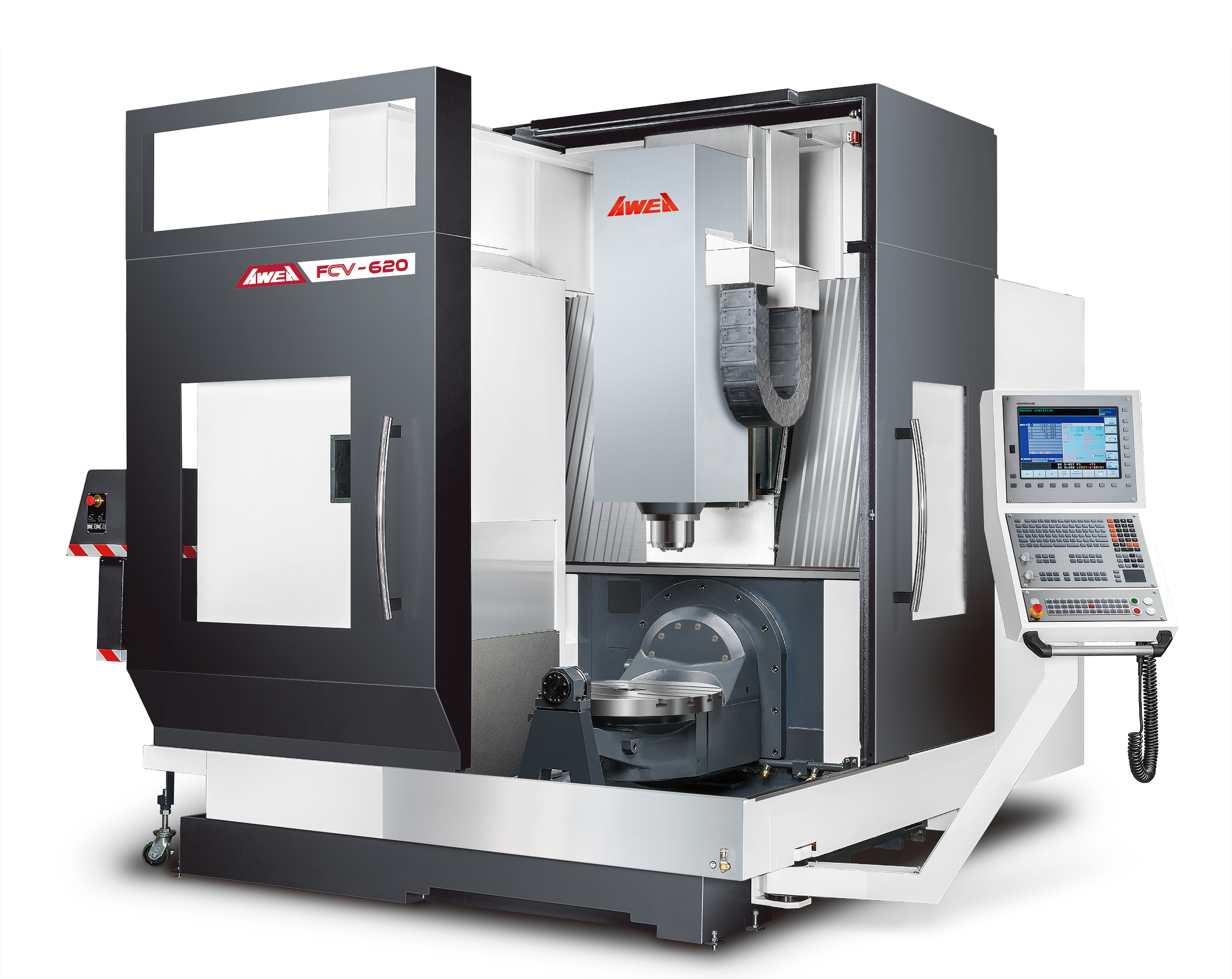

The AWEA FCV-620

Derived from AWEA’s advanced R&D technology and high quality components, FCV series 5-axis machining center offers high speed, high accuracy, easy operation and many other superior capabilities. FCV series is having best performance costratio than any other same class models in the field of the 5-axis machining center.

Outstanding 5-axis simultaneous machining ability can finish complicated parts in a single setup which especially suits automobile, aerospace, medical and other industries that needs of high accuracy.

High Performance B / C-axis rotary working table. Table load capacity is up to 300 kg ( 0˚ ~ 45˚ ). B-axis swiveling range is -50˚ ~ +110˚ .

Depend on different machining characteristics, FCV series provides 12,000 / 15,000 rpm direct drive spindle or 16,000 / 20,000 rpm high speed built-in spindle.

Additional Information

X-axis Travel

Y-axis Travel

Z-axis Travel

B-axis rotary range

C-axis rotary range

B / C axes swiveling speed

Dist. from spindle nose to table center

Table diameter

Table load capacity ( 0° ~ 45° )

Table load capacity ( 45° ~ 90° )

T-slot ( width x no. x space )

Spindle taper

Spindle speed

Spindle motor (cont. / min.)

X / Y / Z axes rapid feed rate

Cutting feedrate

Tool magazine capacity

Max. tool diameter / adj. pocket empty

Max. tool length

Max. tool weight

Positioning accuracy ( VDI 3441 )

Repeatability ( VDI 3441 )

Control system

Power requirement

Machine weight
